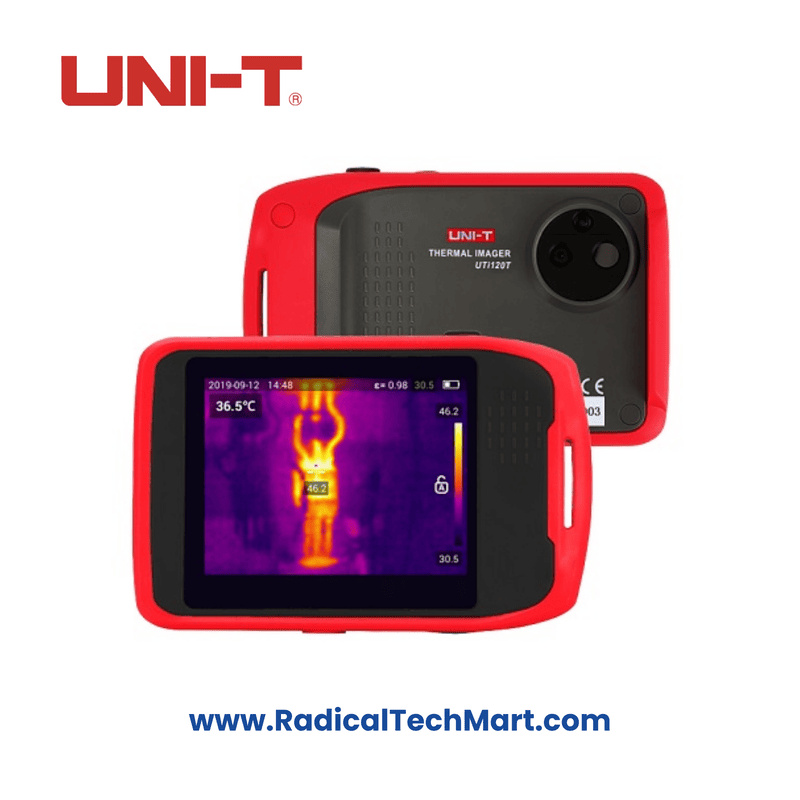

UNI-T UTi120T Pocket-sized Thermal Imaging Camera

The UTi120T is a compact and portable thermal camera designed for easy use and convenience. Its pocket-sized form allows users to carry it effortlessly, making it ideal for on-the-go diagnostics. The camera features a 3.5-inch TFT touch display with a resolution of 320×240 pixels, offering a clear view for operation. The UTi120T can automatically track temperatures within a range of -20°C to 400°C (-4°F to 752°F) and is equipped with Wi-Fi connectivity through the UNI-T Mobile App for remote access and control.

Key features include:

• Compact and portable design for easy handling and storage
• 5-inch TFT touch screen with a resolution of 320×240 pixels for a user-friendly interface
• IR resolution of 120×90 pixels, providing clear thermal imaging
• Temperature measurement range from -20°C to 400°C (-4°F to 752°F) with an accuracy of ±2°C or ±2%, whichever is greater
• On-screen analyzer for displaying 1 point or 1 rectangle for precise temperature tracking
• Auto alarm for high or low temperature detection, along with automatic tracking for hot and cold spots
• Image capture functionality with multiple image modes, including Thermal, Fusion, Visual Image, and Picture-in-Picture (PIP)
• Digital camera resolution of 640×480 pixels for clear visual images
• Digital zoom with 1.0~8x continuous zoom for detailed inspection
• 6 color palettes available: White hot, Black hot, Ironbow, Hot iron, Arctic, and Medical, for various diagnostic needs
• LED flashlight for enhanced visibility in low-light conditions
• PC software analysis for detailed post-analysis of captured images
• Wi-Fi support for remote operation via the UNI-T Mobile App
• Rechargeable Li-ion battery with USB charging
• IP54 rating for dust and water resistance, and drop-proof up to 1 meter
• 1/4-inch tripod mounting hole for stable mounting during use

The UTi120T thermal camera is equipped with a focus-free feature, ensuring quick setup and use. Its NETD thermal sensitivity is ≤60mK, allowing for high accuracy in detecting temperature variations. The spectral range spans from 7.5µm to 14µm, making it suitable for various industrial applications such as electrical, mechanical, and building diagnostics.

With a 1-year warranty, the UTi120T is a reliable, versatile tool for both professional and personal use.
